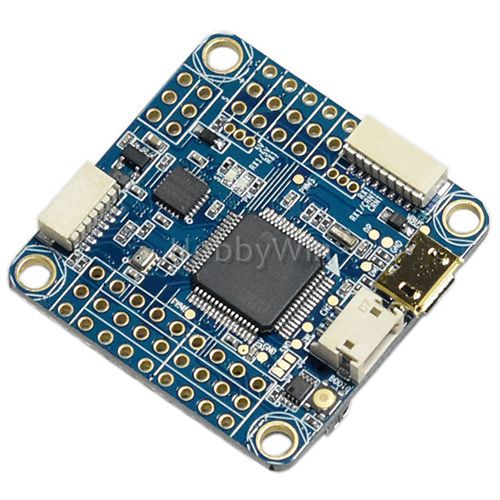

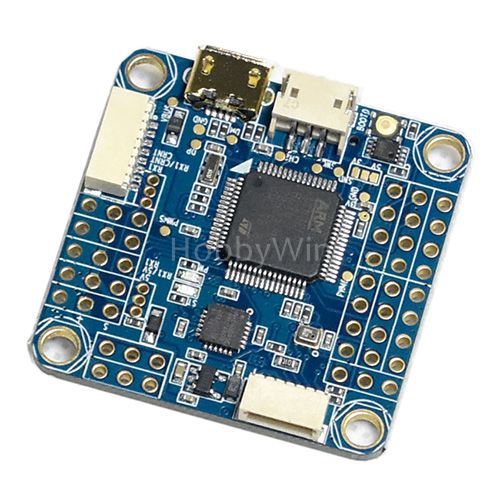

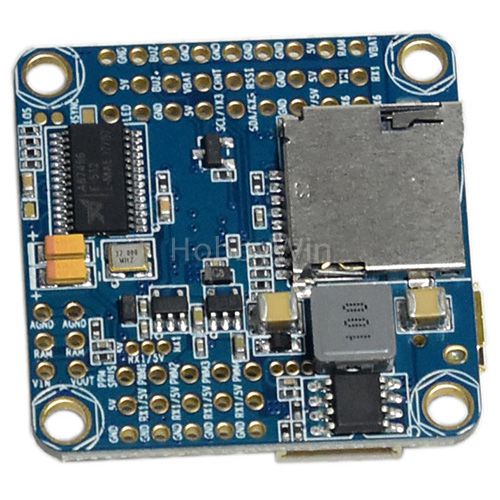

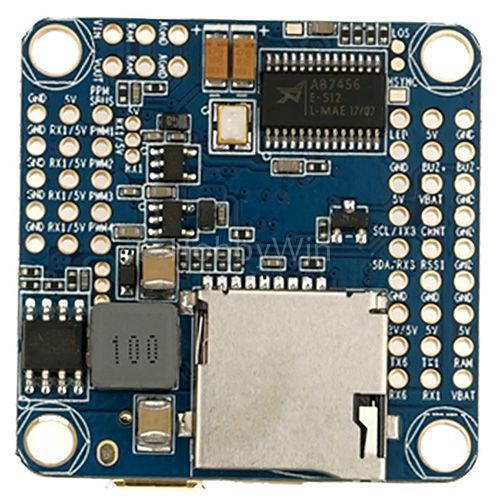

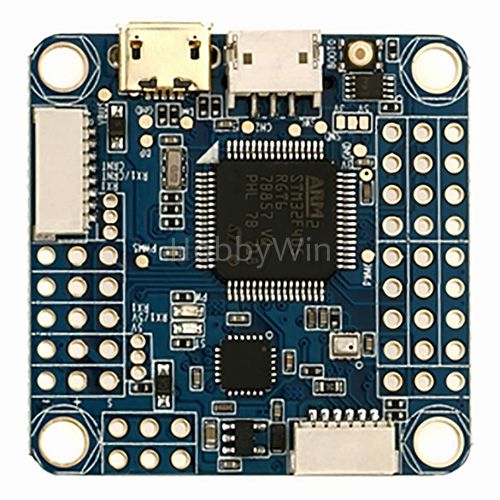

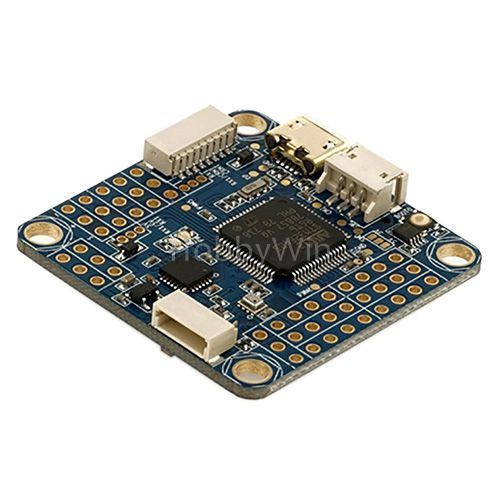

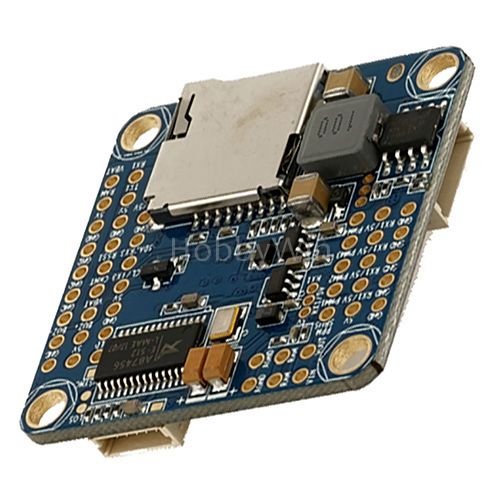

F4 V5 Flight Controller FLASH BEC OSD Baro 8pin 4in1 ESC Plug

F4 V5 Flight Controller FLASH BEC OSD Baro 8pin 4in1 ESC Plug
Made By: Airbot
Item No.: AB80067 (Buy-It-Now)

Package Content:
1x F4 V5 Flight Controller

Overview:
OMNIBUS F4's upgrade version, using F405 instead of F303, could run faster loop time.
Classic OMNIBUS design, using F4 MCU controls OSD over SPI bus, compare the first version.
Newly added BMP280 as barometer and support SD Card.
OSD Configuration has been incl. in Betaflight GUI.
FC incl. 5V1A BEC on board(3-6s).
MPU6000 at SPI bus.
New version with 8PIN Sh1.0 Socket, could be much easier connect to our 4in1 ESC by one cable.
On the V5, newly added jumpers for Current source select, please read the manual and set the jumper before using the FC.

Features:
STM32 F405 MCU, Runs Betaflight 3.0 firmware
SBUS/PPM input (Pinheaders)
6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
Size: 36x36mm
Mount Holes: 30.5x30.5mm
INCL. BARO BMP280
SPI Sensor MPU6000
SD Card slot
