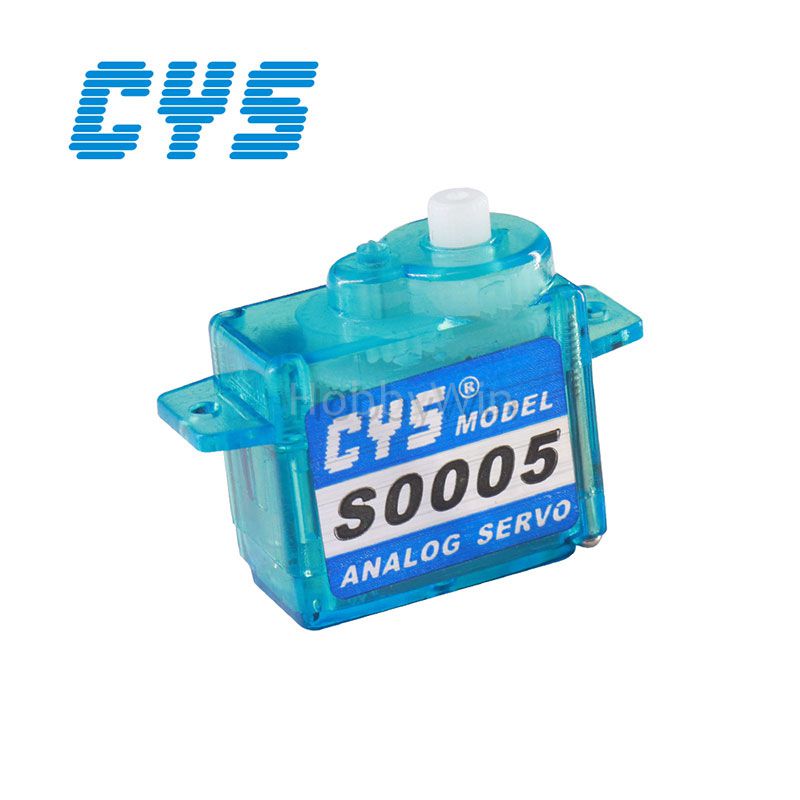

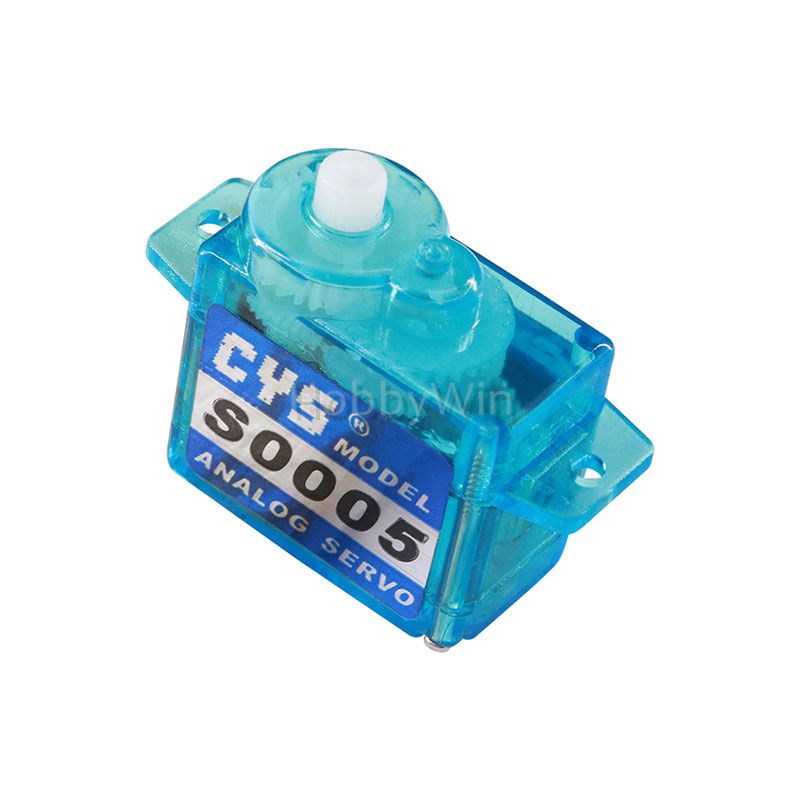

CYS S0005 Plastic Gear 5g Analog Servo

CYS S0005 Plastic Gear 5g Analog Servo
Made By: CYS MODEL
Item No.: CYS-S0005 (Buy-It-Now)

MPN: S0005
Q'TY: 1P /bag

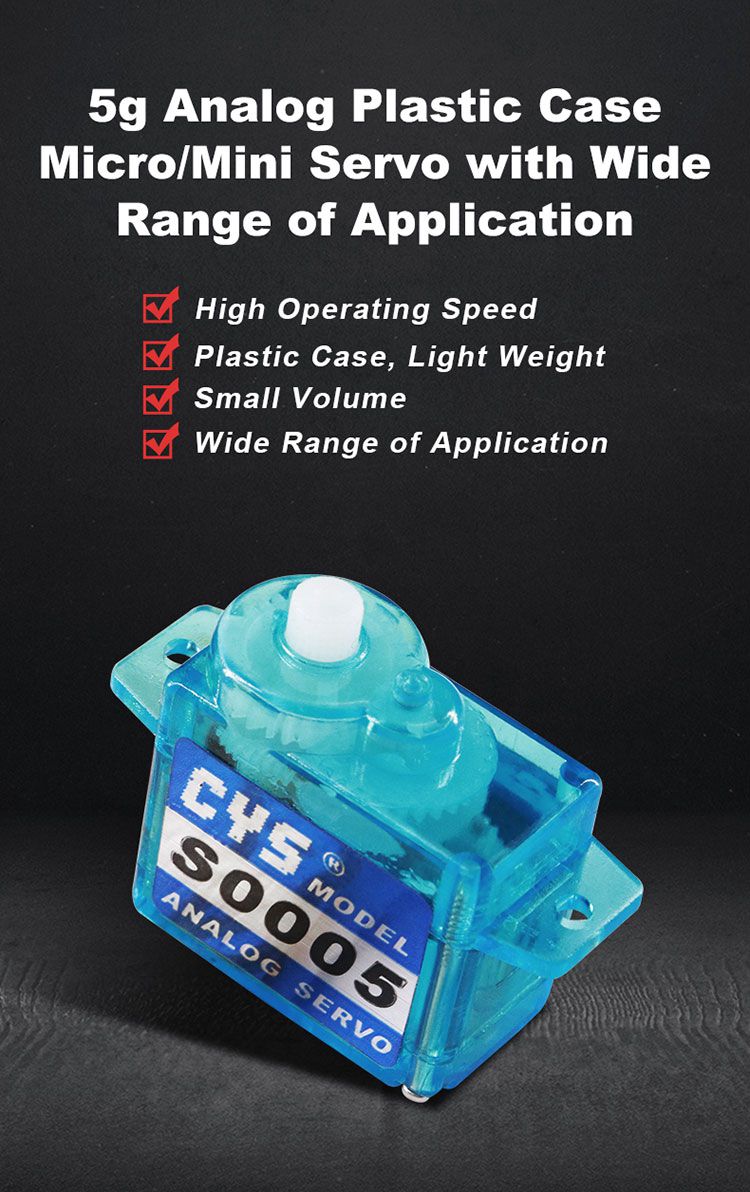

5g plastic gear analog servo

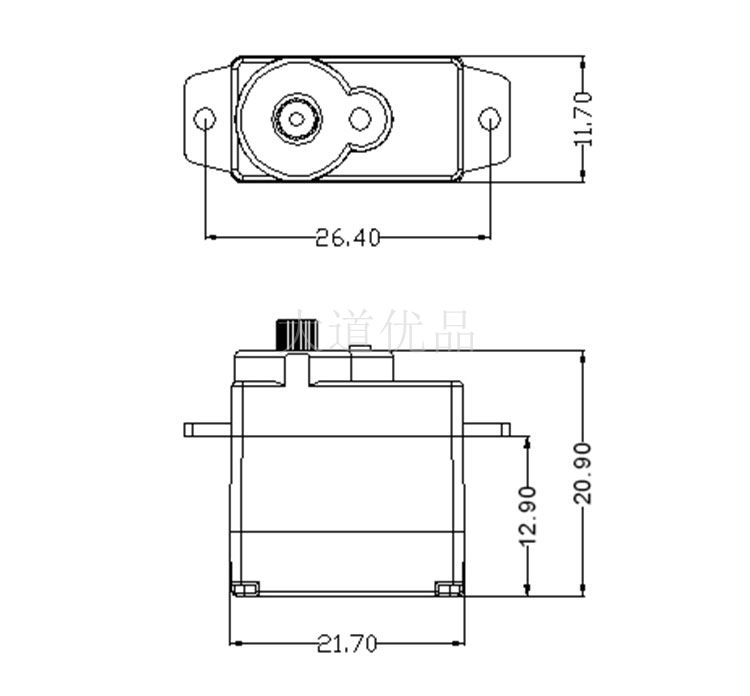

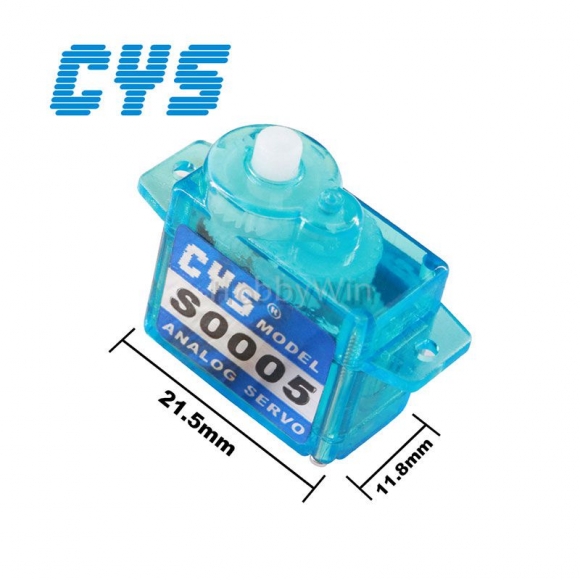

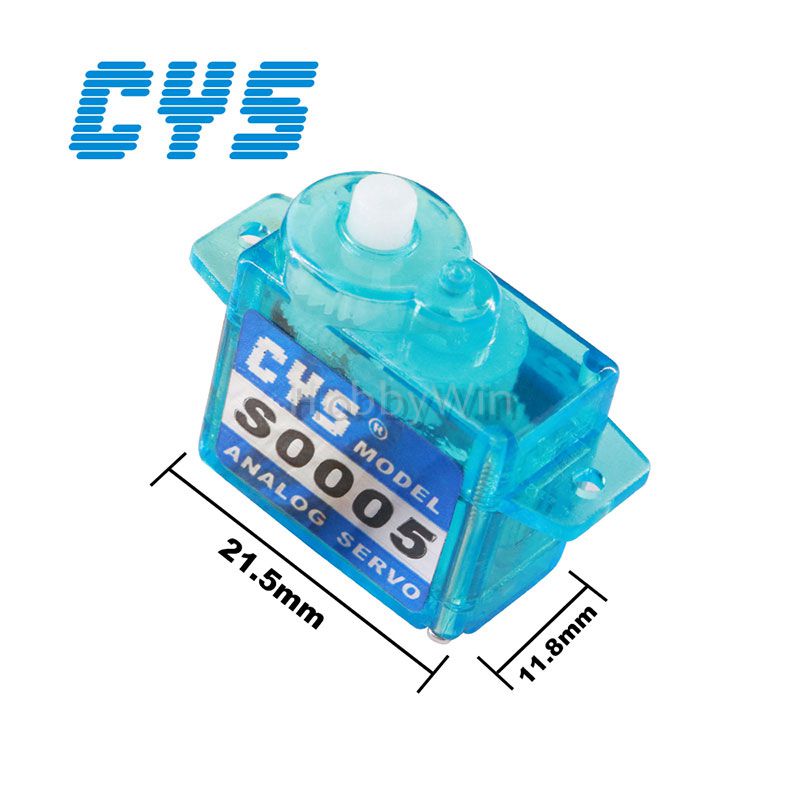

Size: 21.5*11.8*20.9mm /0.85*0.46*0.82in
Weight: 5g (0.18 oz)
Wire Length: 18cm
Plug Type: JR connector
Operating Voltage: 4.8-6.0V

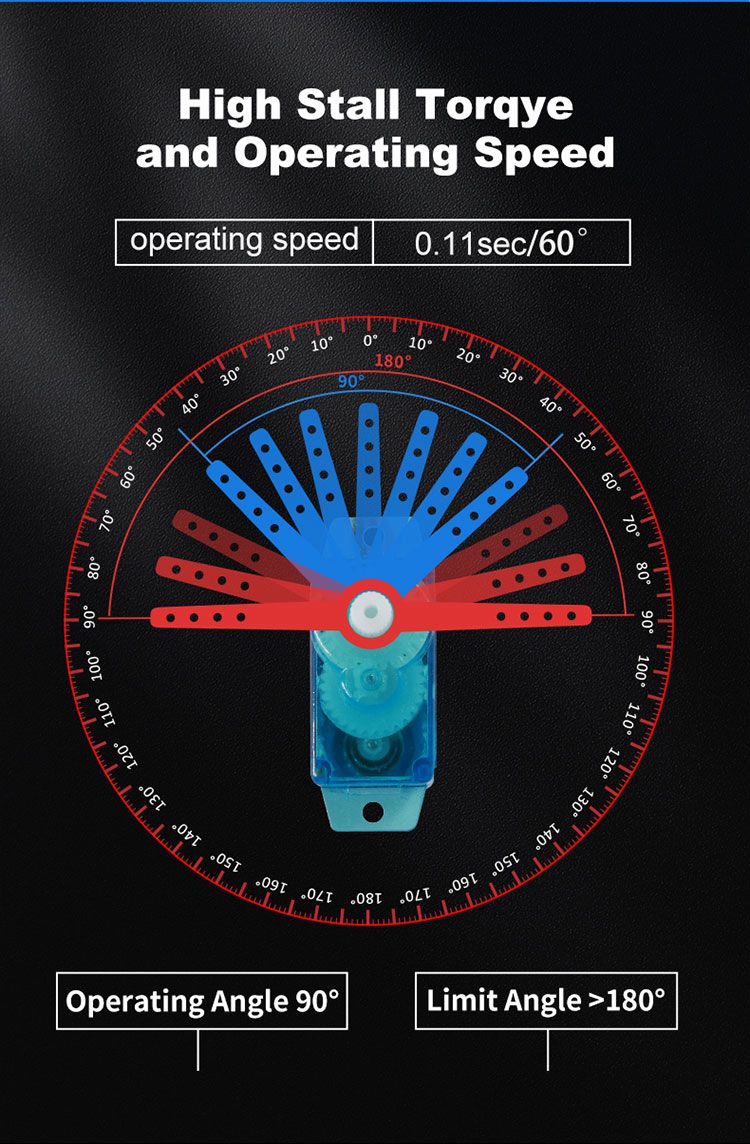

Operating Speed at no load:
(4.8V) 0.14sec/60 degree
(6.0V) 0.12sec/60 degree
Stall Torque:
(4.8V) 0.8kg.cm (11.11 oz/in)
(6.0V) 1.0kg.cm (13.89 oz/in)
Suitable for mini size R/C Airplane Helicopter

Important Notes:
01. JR plug with 18cm wire.

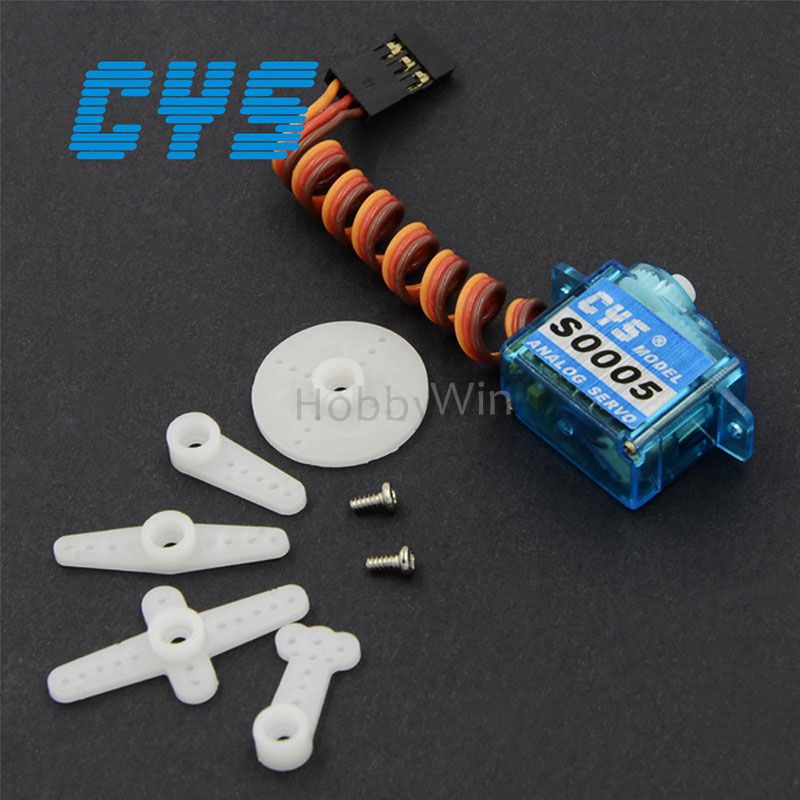

02. Refer to the figure when installing the servo accessories.
03. For engine powered airplanes and boats, rubber must be used to reduce vibration.
04. Please choose correct model for your application.
05. Torque over-loaded will damage the servo's mechanism.
06. Keep the servo clean and away from dust, corrosive gas and humid air.
