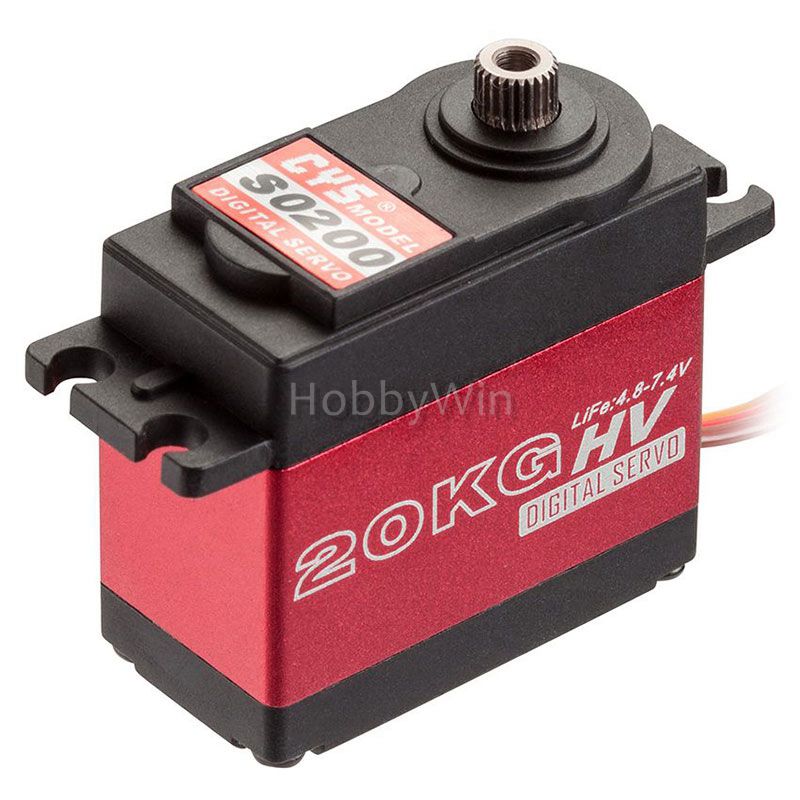

CYS S0200 Metal Gear Digital Servo 20kg

CYS S0200 Metal Gear Digital Servo 20kg
Made By: CYS MODEL
Item No.: CYS-S0200 (Buy-It-Now)

Model: S0200
Metal Gear Digital Servo

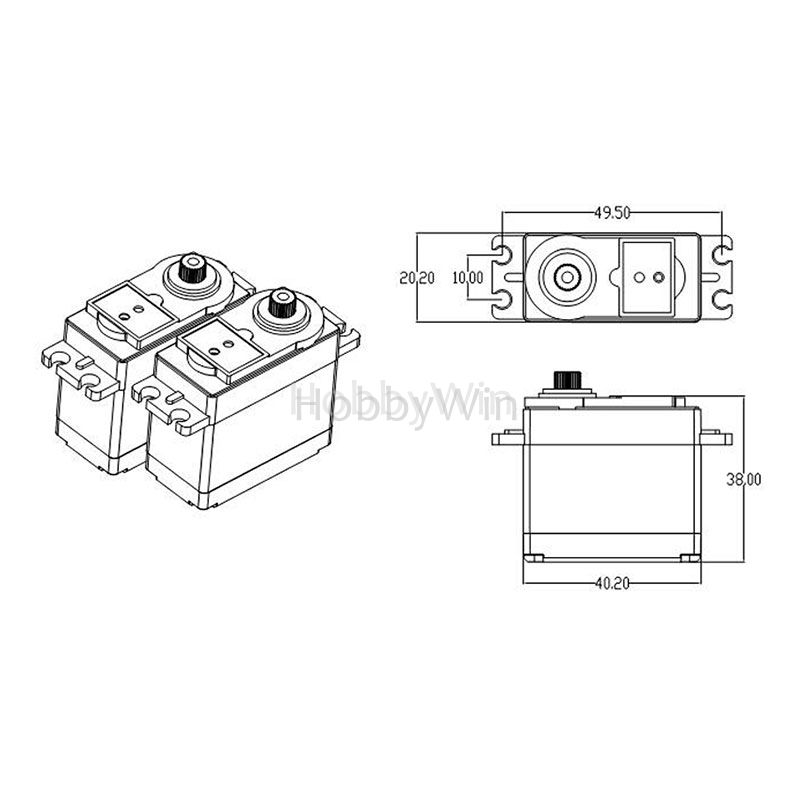

Size: 40.5*20*38mm
Weight: 62g (+/- 1g)
Control System: (+)Pulse Width Control 1500usec Neutral
Work Voltage: 6.0-7.4V
Operating Temperature Range:    -10 ~ 50 celsius degrees
Operating Speed at no load:
0.14sec/60 degree (6.0V)
0.12sec/60 degree (7.4V)
Stall Torque:
18kg.cm -(6.0V)
20kg.cm -(7.4V)
Operating Angle: 45deg.one side pulse traveling 500 usec
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V): 20mA/idle and 120mA no load operating
Current Drain (7.4V): 20mA/idle and 150mA no load operating
Stall Current: 2.5A/2.8A
Dead Band Width: 4usec
Motor Type: NdFeB
Bearing Type: Dual ball bearing
Horn gear spline: 25T
Gear Type: Metal
Connector Wire Length: 300mm±5mm

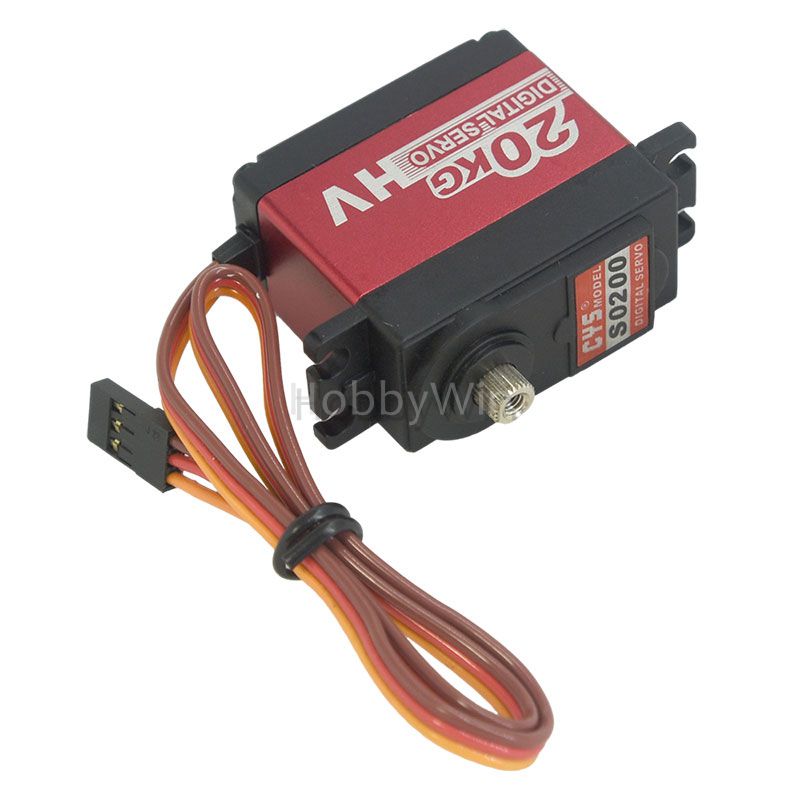

Wire info
Brown/Black = Negative
Red = Positive
Orange/White = Signal
JR type plug
Q'TY: 1P

Important Notes:
01. JR type plug.
02. Refer to the figure when installing the servo accessories.
03. For engine powered airplanes and boats, rubber must be used to reduce vibration.
04. Please choose correct model for your application.
05. Torque over-loaded will damage the servo's mechanism.
06. Keep the servo clean and away from dust, corrosive gas and humid air.
